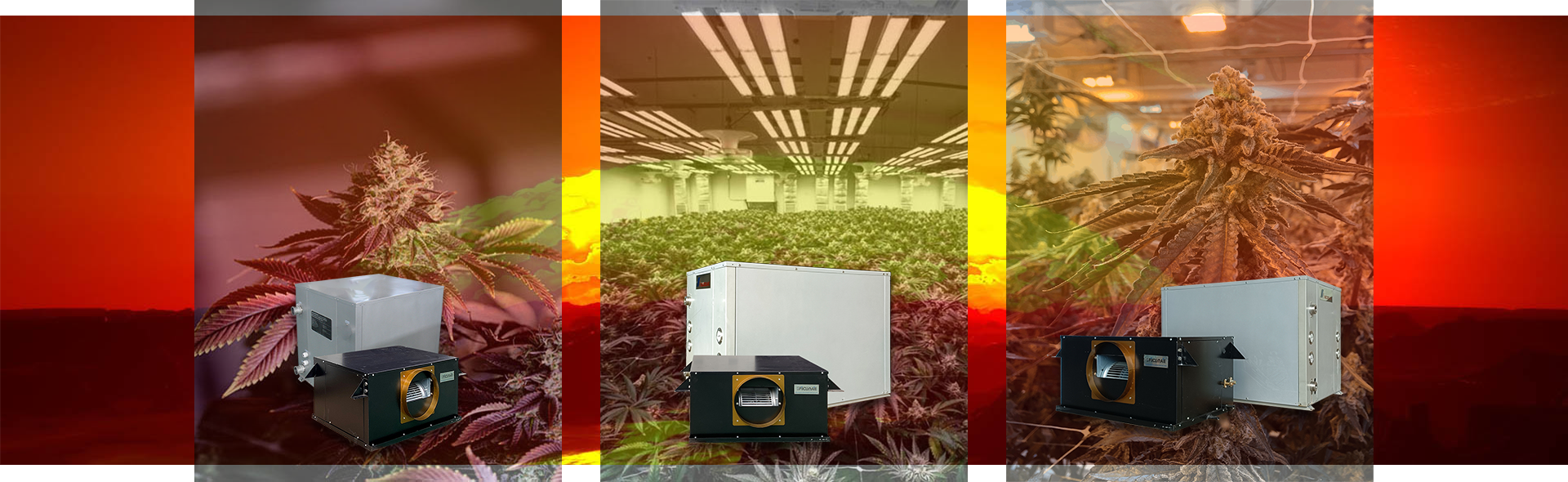

Split PRO5 Series (Water cooled)
Product Description
The PRO5 Split (Water Cooled) series is based on 4 basic modules-outdoor unit (water cooled), indoor unit, piping and control system.
Hicool combines the water cooled system with the split system, inheriting the high efficiency of the water cooled system and the simplicity of the split system.
Its unique design means that the Split Unit can be connected to one of the most popular "green" energy sources-ground source applications.
The heat is discharged to the water source and does not need to exchange heat with the outside air. It has greater flexibility and higher COP, which is very suitable for use in climates with too high and too low temperatures.
Why choose PRO5 Split (Water Cooled) series?
l The high efficiency of the water cooled system and the simplicity & flexibility of the split system enable the indoor unit to have the smallest size, the quietest operating environment and the highest work efficiency.
It is very suitable for projects with restrictions on indoor space/noise and requirements for energy efficiency.
l The efficiency of the air-cooled system will be reduced under extreme environmental conditions, and the operation of the PRO5 Split (Water Cooled) series is not affected by the outside temperature.
l The PRO5 Split (Water Cooled) series system can be connected to the groundwater circuit. It is one of the most energy-saving and environmentally-friendly air-conditioning systems on the market.
l Less cooling capacity; Higher system efficiency.
l Water-cooled systems usually require less refrigerant charge than air-cooled systems, and are especially suitable for projects with restrictions on refrigerant usage.
l The outdoor unit does not have a condensing fan, so it is quiet when placed indoors or outdoors.
Option
Quick connector, plug and play. No need for professionals, customers can install split unit themselves.
Product Features
l PRO5 Split (Water Cooled) series can use lakes, rivers and ground loops as natural radiators without cooling towers or dry coolers.
l Variable water flow control, the unit automatically controls the water flow through the condensation regulating valve to improve the operating efficiency of the system and save water resources.
l The system capability is not affected by the outdoor air temperature.
l The outdoor unit (water-cooled) can be installed inside/outside the building to adapt to different project types.
l Quiet outdoor unit (water cooled), quiet outdoor environment.
l Excellent efficiency can be maintained even in the most extreme outdoor conditions, especially when ground loops are used.
l Compact indoor unit design, saving space.
l Easy to install and maintain.
l PRO5 Split (Water Cooled) series can use existing equipment to replace old water-cooled/air-cooled systems, such as cooling towers, dry coolers, groundwater, etc., to further save costs.
Application Range
Greenhouse industry, horticulture industry, urban greening industry, offices, hotel, apartments, yachts, and other areas that need to control light, humidity and temperature.
Product Information
In order to provide the best environment for plant growth, Hicool’s engineers creatively invented the “Opticalaircon” technology after more than ten years of independent research and development: that is, "cooling, heating, dehumidification, air circulation, filtration and optical induction" are concentrated in a unique technology in a system.
Model | 6000 PRO5 Split (Water Cooled) | 8000 PRO5 Split (Water Cooled) | 10000 PRO5 Split (Water Cooled) | 15000 PRO5 Split (Water Cooled) | ||
Cooling Capacity | kW | 6 | 8 | 10 | 15 | |
Electrical Heater | kW | 2*1 | 2×1.5 | 2×2.0 | 2×2.0 | |
Rated Input Power | Cooling | kW | 1.7 | 2.2 | 2.6 | 3.9 |
Indoor Unit | ||||||
Power Supply | 220V / 50Hz / 1P | |||||
Rated Air Flow Volume | m3/h | 1080 | 1440 | 1800 | 2800 | |
Fan Motor Power | kW | 0.1 | 0.12 | 0.15 | 0.24 | |
Fan Motor Input Current | A | 0.42 | 0.56 | 0.7 | 1.2 | |
Static Pressure | Pa | 70-200 | ||||
Noise | dB(A) | 47 | 49 | 51 | 54 | |
Net Dimension (L*W*H) | mm | 900×500×380 | 950×540×380 | 1050×600×435 | 1050×600×435 | |
Net Weight | kg | 42 | 45 | 49 | 59 | |
Outdoor Unit | ||||||
Power Supply | 220V/1P/50Hz | |||||
Compressor | Qty | 1 | 1 | 1 | 1 | |
Type | Rotor | Scroll | ||||
Refrigerant | HFO-1234yf /R417A/R410A/407C etc. | |||||
Connecting Pipe | Liquid | Inches | 3/8" | 1/2" | ||
Gas | Inches | 5/8" | 3/4" | |||
Maximum Piping Length | m | 15 | ||||
Maximum Height Drop | m | 6 | ||||
Noise | dB(A) | 45 | 45 | 47 | 49 | |
Net Dimension (L*W*H) | mm | 850×640×460 | 910×640×460 | 1010×640×500 | 1010×640×545 | |
Net Weight | kg | 68 | 74 | 80 | 128 |
